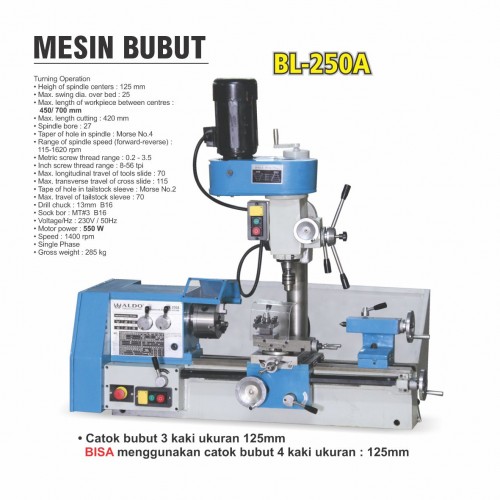

Spesification:

Turning Operation Heigh of spindle centers : 125 mm Max. swing dia. over bed : 25 Max. length of workpiece between centres : 450 / 700 mm Max. length cutting : 420 mm Spindle bore : 27 Taper of hole in spindle : Morse No.4 Range of spindle speed (forward-reverse) : 115 - 1620 rpm Metric screw thread range : 0.2 - 3.5 inch screw thread range : 8 - 56 tpi Max. longitudinal travel of tools slide : 70 Max. transverse travel of cross slide : 115 Tape of hole in tailstock sleeve : Morse No.2 Max. travel of tailstock slevee : 70 Drill chuck : 13mm B16 Sock bor : MT#3 B16 Voltage/Hz : 230V / 50Hz Motor power : 550 W Speed : 1400 rpm Single Phase Gross weight : 276 kg
